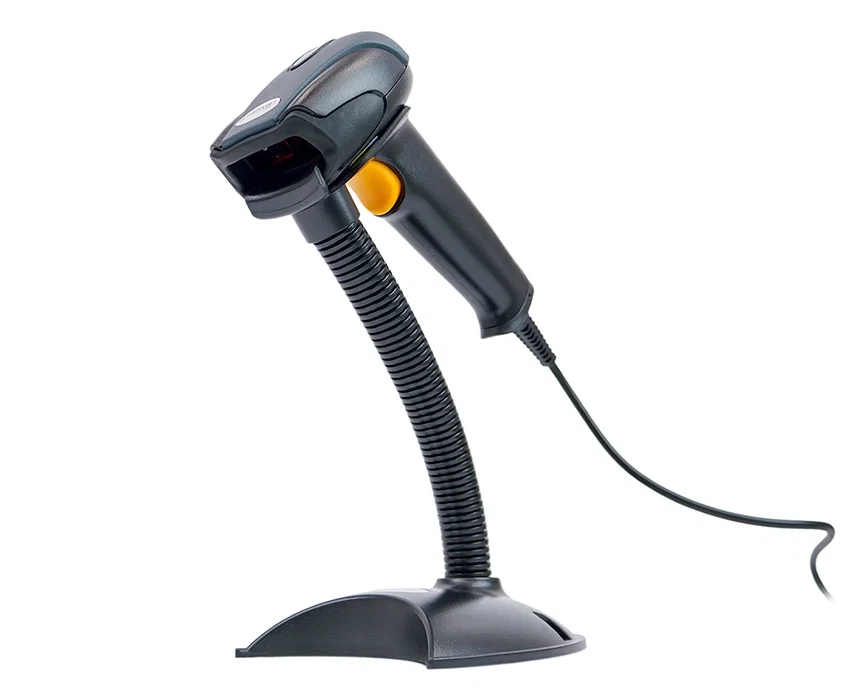

HD29A automatic barcode scanner with cradle

SKU: HD29A
  • Sweep speed: 200 sweeps per second
  • Scan confirmation: LED indicator and acoustic signal
  • Available interfaces: USB, RS232
  • Protection class: IP54

Introducing the HD29A wired professional code reader

The HD29A wired barcode scanner is made from high-quality materials. It’s made from high-quality materials that guarantee durability and has a sturdy construction, thanks to which it will perform perfectly, even in tough conditions. Its ergonomic shape and well-balanced weight make it a pleasure to use every day. The scanner works seamlessly with the cash register, making it ideal for stores and supermarkets.

The HD29A model is available in two versions: with USB and RS232 cable.

wired barcode scanner with cradle and autoscan

Fast, automatic code reading

The HD29A features a modern, professional reading engine that can read all major 1D codes, whatever their quality. It can easily scan difficult, blurred or damaged codes. The device can work in automatic mode, which means that codes are scanned immediately as they approach the scanner window, eliminating the need to press a button and increasing efficiency. The automatic mode, combined with the bracket included in the package, means that the HD29A is virtually maintenance-free. The great advantage of this device is that any prefix and suffix can be programmed, including the function keys (F11, F9, F7 e.t.c.).

HD29A barcode scanner with stand and autoscan

The package includes

Wired barcode reader, USB or RS232 cable (depending on your choice), stand, user manual.

HD29A Wired barcode reader

Discover HD29A again

Watch the HD29A video presentation on YouTube.

Frequently asked questions


What should I do if the scanner doesn’t detect a code and the LED flashes alternately? flashes alternately?
If the reader’s LED flashes alternately blue and green, wait for the scanning laser to appear. Next, reset the drive to factory settings using the “Set Defaults” code, found in the paper manual on page 3. 3 These instructions are enclosed with the drive.
You can also scan the code in the electronic version of the Polish manual, which you’ll find on the product page in the Downloads section. The code to scan The code to scan is entitled “Restore factory settings” and can be found on page 4 in the Main codes section.


How do I set the prefix and suffix on the HD29A using the instructions on paper?
The HD29A can be programmed with any character as a prefix or suffix. The setting is made by scanning the corresponding control codes in the barcode.
the player’s instruction manual. If you would like a step-by-step guide on how to proceed.


How do I configure the HD29A reader to work with Weaver WMS?
The HD29A model can be used with accounting and warehouse software such as Weaver WMS, FOR EXAMPLE. For the scanner to work correctly with the program, it must be configured accordingly.

Specifications

Guarantee

2 ans

Material of workmanship

ABS + PC

Source of light

Laser 650nm

Scan method

sur le bouton (manuel) / après présentation du code (automatique)

Scan confirmation

LED et signal sonore

Scan speed

200 balayages par seconde

Maximum resolution

0,127 mm

Power consumption

85 mA

interface

USB, RS232

Cable length

200 cm

Level of security

IP54

Device dimensions

65 x 165 x 90 mm

Stand dimensions

120 x 150 x 240 mm

Size of the package

220 x 130 x 90 mm

Device weight

200 g

Weight with packaging

350 g

Working temperature

0 à 45°C

Storage temperature

-40 à 60°C

Working humidity

5 à 90%

Storage humidity

5 à 90%

Readable 1D codes

UPC/EAN, UPC/EAN z dodatkami, UCC/EAN 128, Code 39, Code 39 Full ASCII, Code 39 trioptique, Code 128, Code 128 Full ASCII, Codabar, Entrelacé 2 z 5 (ITF), Discrete 2 z 5, Code 93, MSI, Code 11, RSS warianty, Chinese 2 z 5, MSI/Plessey,UK/Plessey,UCC/EAN 128,chinese code,IATA, GS1 DataBar(RSS)
