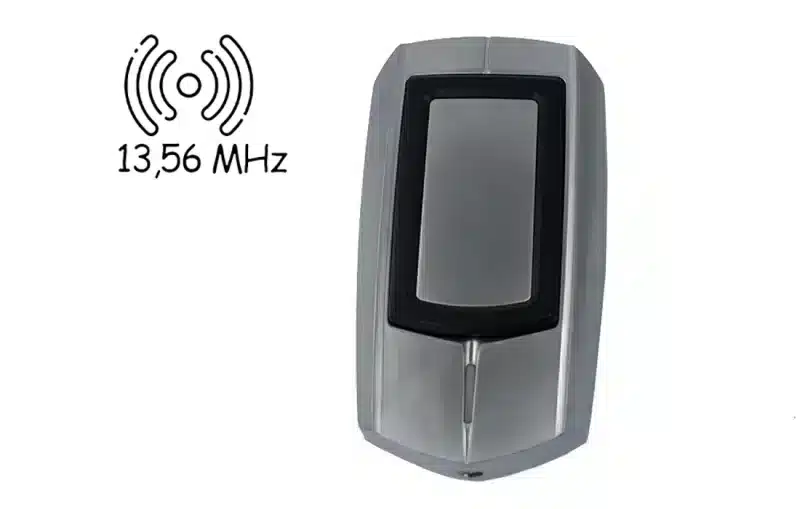

Access control, 13.56 MHz card RFID reader, water ingress resistant, IP68, DC 9V - 16V SecureEntry-CR50HF

SKU: SecureEntry-CR50HF
  • Verification type: RFID card
  • Frequency of operation: 13,56 MHz
  • Operating voltage: DC 9V – 16V, standard 12V
  • Interface: Wiegand 26/34
  • Proximity range: 3-10 cm
  • Degree of protection: IP68

Open any door with an access control reader SecureEntry-CR50HF

The reliable and rugged SecureEntry-CR50HF access control reader has been designed for managing entrance to buildings and rooms. It has a robust design, and the IP68-rated metal housing not only provides resistance to mechanical damage, but also protects against the ingress of water into the device. As a result, the access control can be successfully installed outside the building.

The reader will prove itself as an access device in all kinds of companies, institutions, offices or blocks of flats.

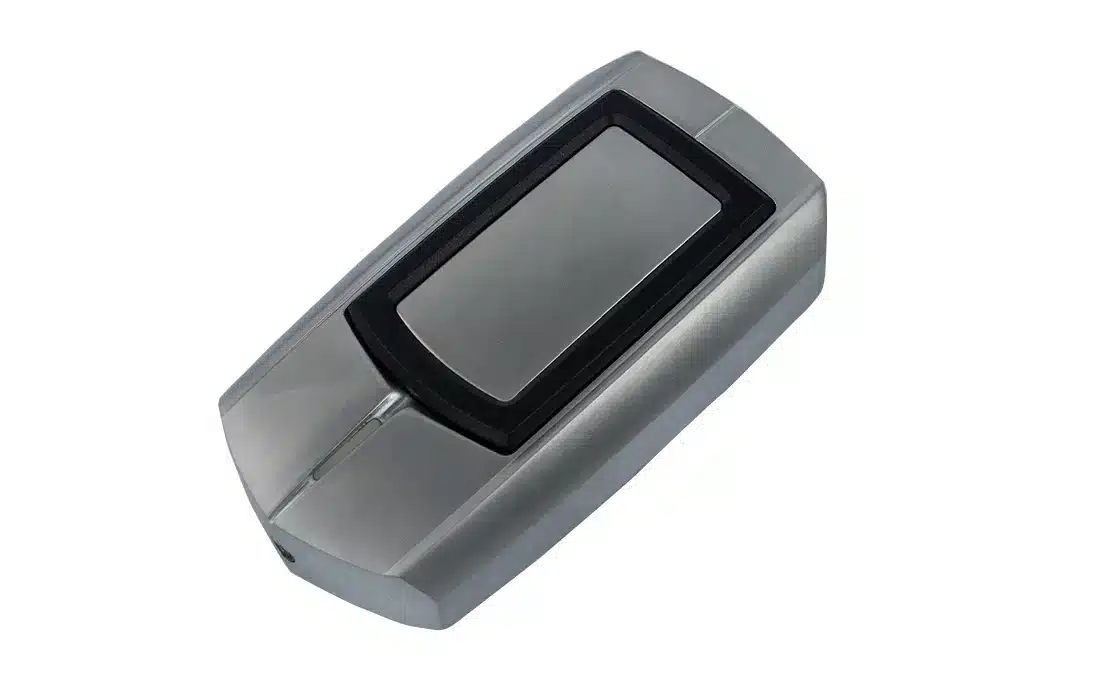

SecureEntry-CR50HF RFID card access control reader

Open conveniently with your RFID card

The SecureEntry-CR50HF features an operating voltage of DC 9V – 16V and operates at 13,56 MHz. When it is combined with an electronic or electromagnetic door lock, it allows the door to be unlocked quickly and conveniently using an RFID card. The user is informed of the correct reading of the proximity card by an LED and an audible signal. In addition, the Wiegand 26 and Wiegand 34 interface allows the reader to be connected to a time recorder or other external device, creating a more advanced access control system.

RFID reader for access control by HDWR.

The set includes:

Access control reader with wires, special allen key.

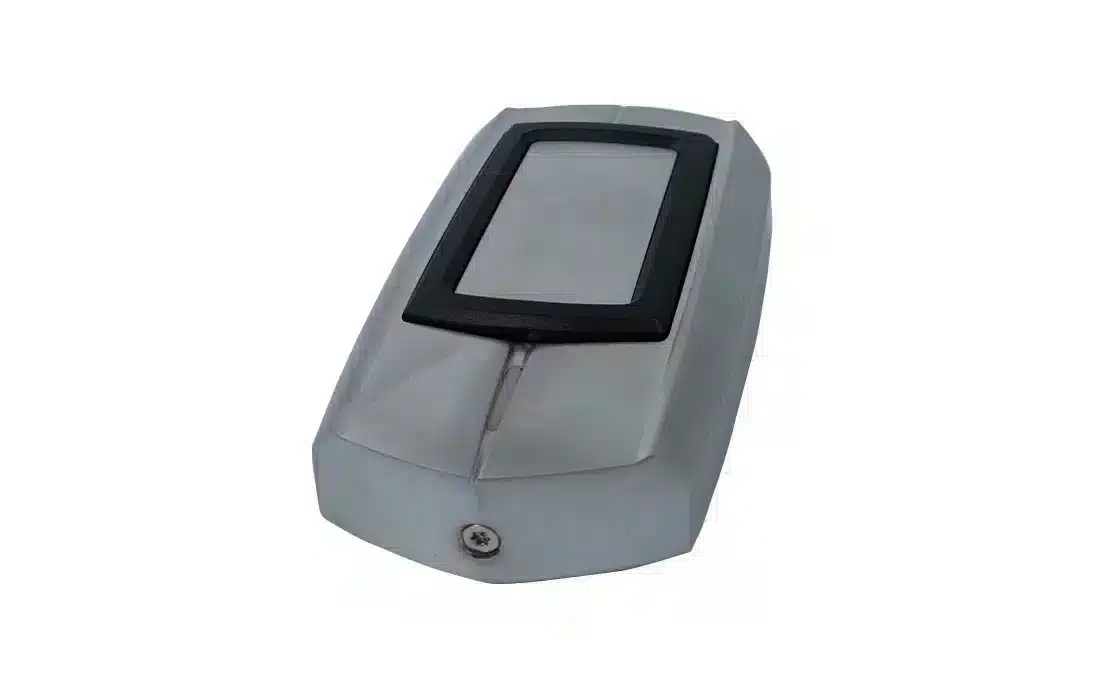

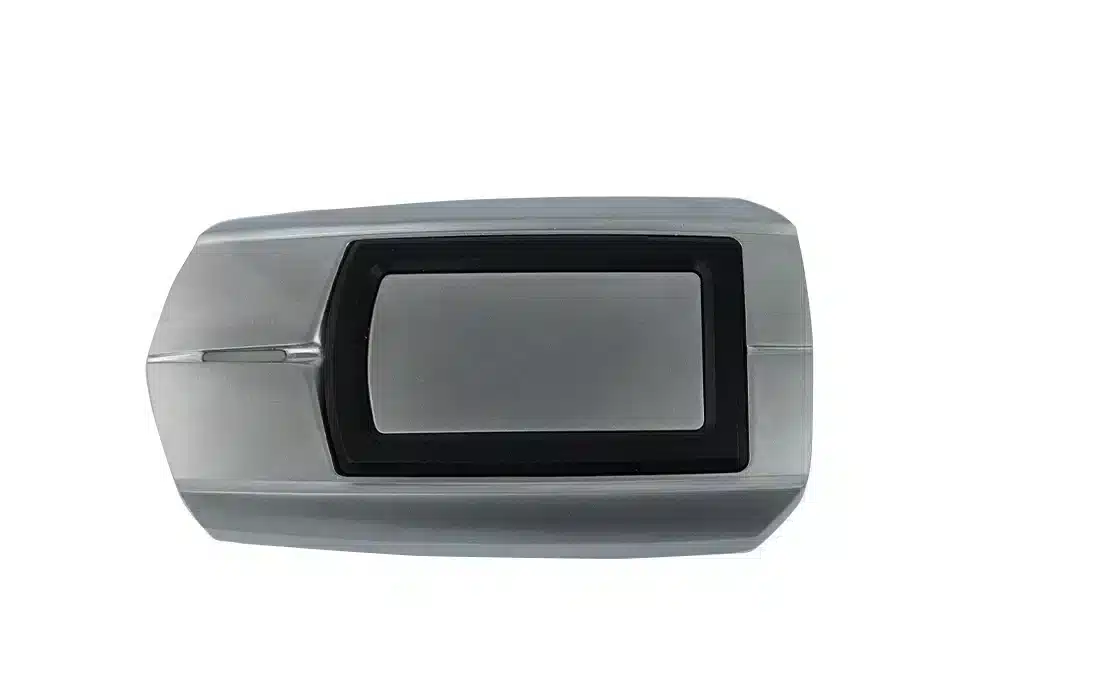

SecureEntry-CR50HF RFID card access control from HDWR

Frequently asked questions

Specifications

Warranty

1 year

Device type

RFID reader with access control

Verification type

RFID card

Fabrication material

metal

Speed of response

less than 0.2 seconds

Proximity range

3-10 cm

Communication distance

100 meters

Data transfer

in real time

Operating voltage

DC9V-16V, standard 12V

Operating current

70 mA

Light signal

Built-in LED (two-color LED)

Sound signal

Built-in speaker (buzzer)

Audiovisual signaling

when the registered card is applied to the reader, the red LED red LED flashes green and a beep is emitted

Interface

Wiegand 26/34

Supported RFID cards

13,56 MHz Mifare

Access control

yes

Degree of protection

IP68

Operating temperature

-25º C to 75º C

Operating humidity

10%-90%

Product dimensions

12 x 6,5 x 2,1 cm

Package dimensions

14,2 x 9,2 x 4,3 cm

Product weight

400 g

Product weight with packaging

500 g
