Access control system, outdoor, RFID card reader IP66 SecureEntry-CR40

GTIN: 5907614668785 SKU: SecureEntry-CR40 Category:
  • Device type: outdoor RFID card reader (reader only, requires external controller)
  • RFID technology: 125 kHz (EM standard chips)
  • Interface: Wiegand 26
  • Read range: up to 3 cm
  • Protection rating: IP66
  • Operating temperature: -40°C to +60°C
  • Power supply: 9–24V DC, 25 mA
  • Dimensions: 105 × 20 mm, weight 180 g

Original price was: €40.56.Current price is: €38.13.(€31.00 net)Lowest price in the 30 days before the discount: €38.13Lowest 30-day price: €38.13

25 in stock

Product availability
Secure payment
Secure payments
Pay quickly online and shop safely with Stripe Accepted payment methods
Shipping and returns
+ Satisfaction guarantee
Returnable within 30 days
Access control icon

Outdoor RFID card reader for access control — SecureEntry-CR40

The SecureEntry-CR40 is a robust outdoor RFID reader built for access control applications. Housed in a durable metal enclosure rated IP66, it provides full protection against dust ingress and powerful water jets, making it suitable for permanent outdoor installation on walls, door frames, and gate posts. The reader operates across a wide temperature range of -40°C to +60°C and withstands humidity from 10% to 95%, delivering reliable access control performance in any weather conditions. Explore more access control readers in our offer.

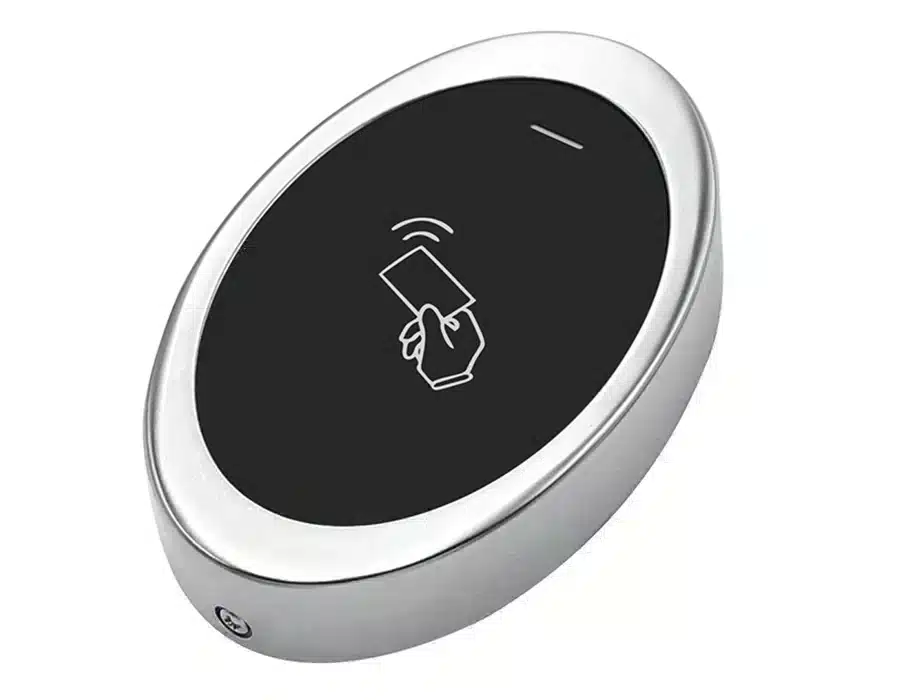

SecureEntry-CR40 outdoor RFID card reader IP66 metal housing

RFID card icon

One device, many possibilities — 125 kHz RFID with Wiegand 26

The SecureEntry-CR40 reads 125 kHz RFID proximity cards and key fobs (EM standard chips) at a range of up to 3 cm. Its Wiegand 26 interface allows straightforward integration with virtually any access controller, door controller, or time and attendance recorder. When wired to an electromagnetic lock or electric strike, the reader operates as a building entry access point — presenting a valid card instantly triggers the locking mechanism. The same reader can simultaneously feed card data to a time attendance recorder for workforce management.

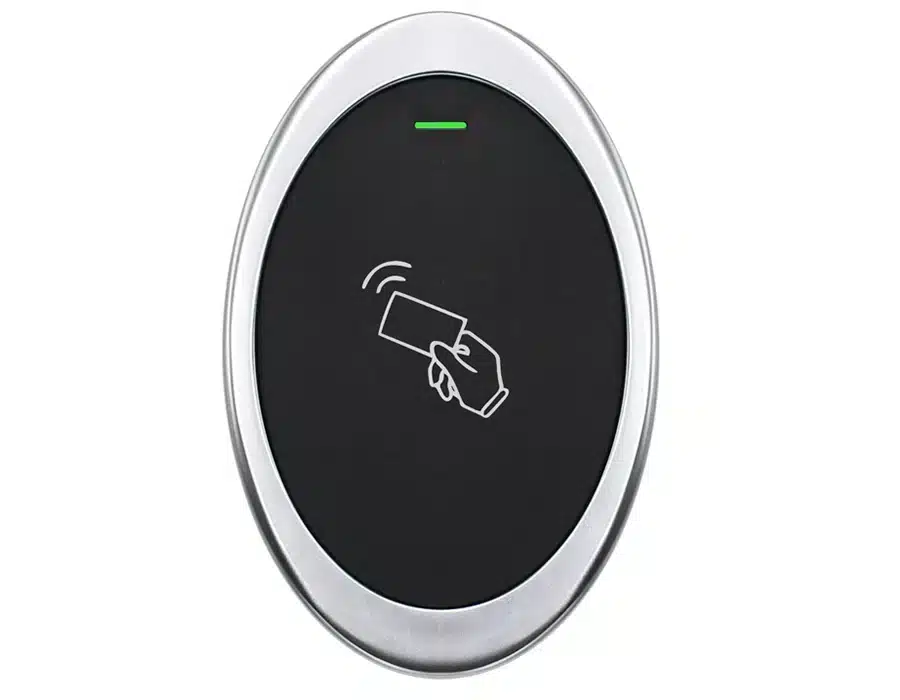

SecureEntry-CR40 125 kHz RFID Wiegand 26 interface access control

Durability icon

Rugged metal housing for demanding outdoor environments

Unlike plastic readers, the SecureEntry-CR40 features a high-quality metal housing that resists mechanical impact, UV exposure, and corrosion. The IP66 protection rating ensures complete sealing against dust and protection against strong water jets — perfectly suited for entrances, parking barriers, warehouse gates, and industrial facilities. Its compact cylindrical profile (105 × 20 mm) and low weight (180 g) allow discreet mounting with the included studs and screws, leaving a minimal footprint next to any door or gate.

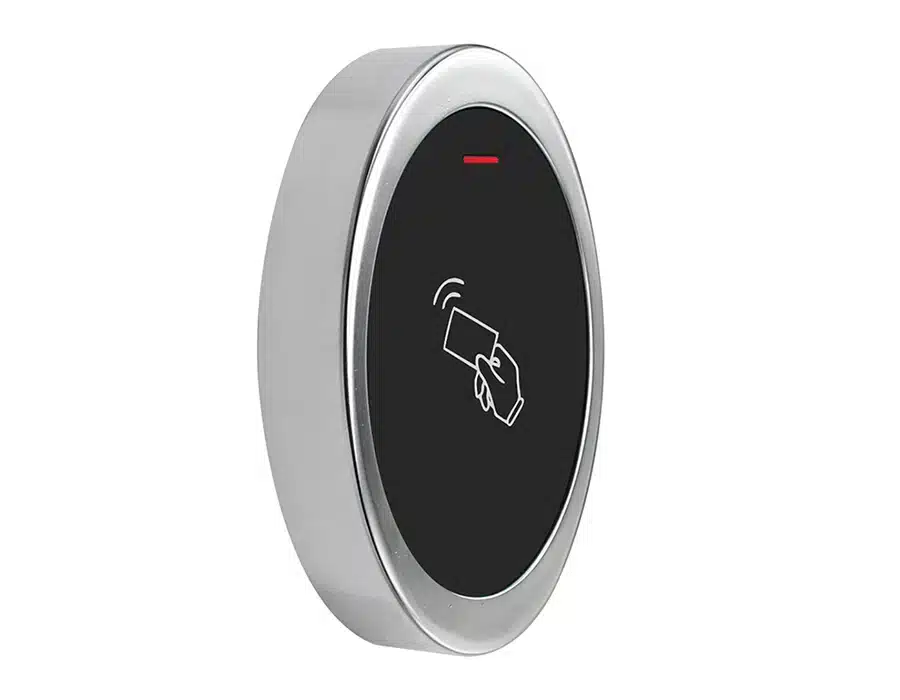

SecureEntry-CR40 rugged metal enclosure outdoor durability

Set contents icon

The set includes:

SecureEntry-CR40 RFID reader with integrated cable, mounting studs and screws, user manual.

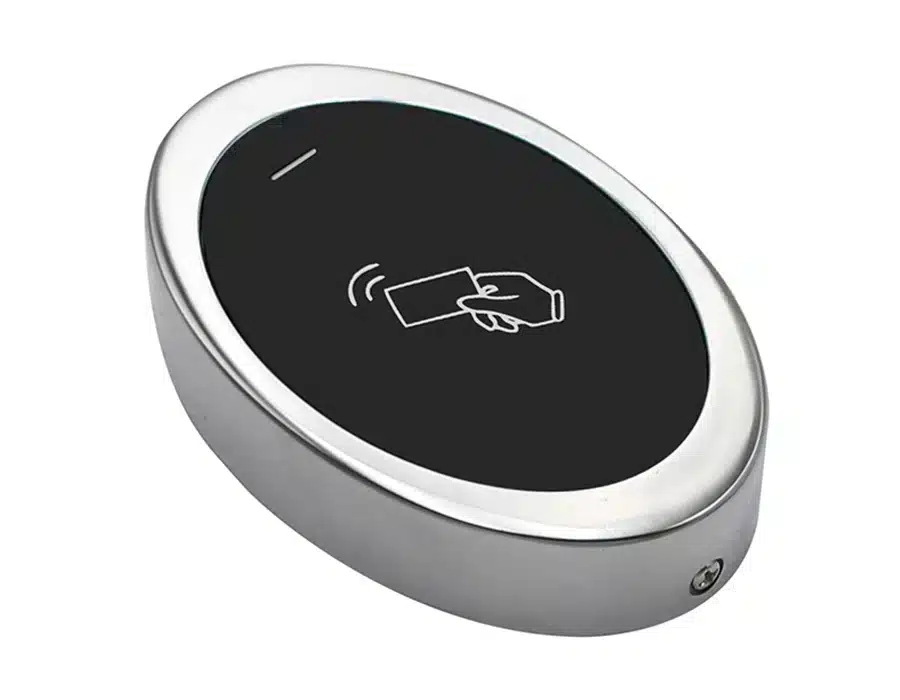

SecureEntry-CR40 set contents RFID reader with accessories

Specification

  • Type of device: RFID reader with access control
  • Supported RFID cards: 125 kHz
  • Interface: Wiegand 26
  • Type of verification: RFID card
  • Reading distance: > 3 cm
  • Working voltage: 9~24V DC
  • Operating current: 25 mA
  • Protection class: IP66
  • Operating temperature: -40°C ~ 60°C
  • Operating humidity: 10% to 95%
  • Dimensions of the device: 105 x 20 mm
  • Package dimensions: 103 x 48 x 19 mm
  • Device Weight: 180 g
  • Weight with packaging: 260 g
