Access control system, RFID card and PIN reader, Wiegand 26, 125 kHz, touch keypad, waterproof SecureEntry-AC400

SKU: SecureEntry-AC400
  • Verification type: RFID card, password
  • Frequency of operation: 125 kHz
  • Operating voltage: DC 9V – 16V, standard 12V
  • Interface: Wiegand 26 Output

Ensure the security of your business and valuable assets with SecureEntry-AC400

SecureEntry-AC400 is a compact RFID reader designed for building access management. It provides security and protects against unauthorized entry. It is made of high quality materials and has a housing resistant to water ingress, so it can be successfully installed outdoors. It will work well in companies, offices, institutions of all kinds, as well as in apartment blocks or private homes.

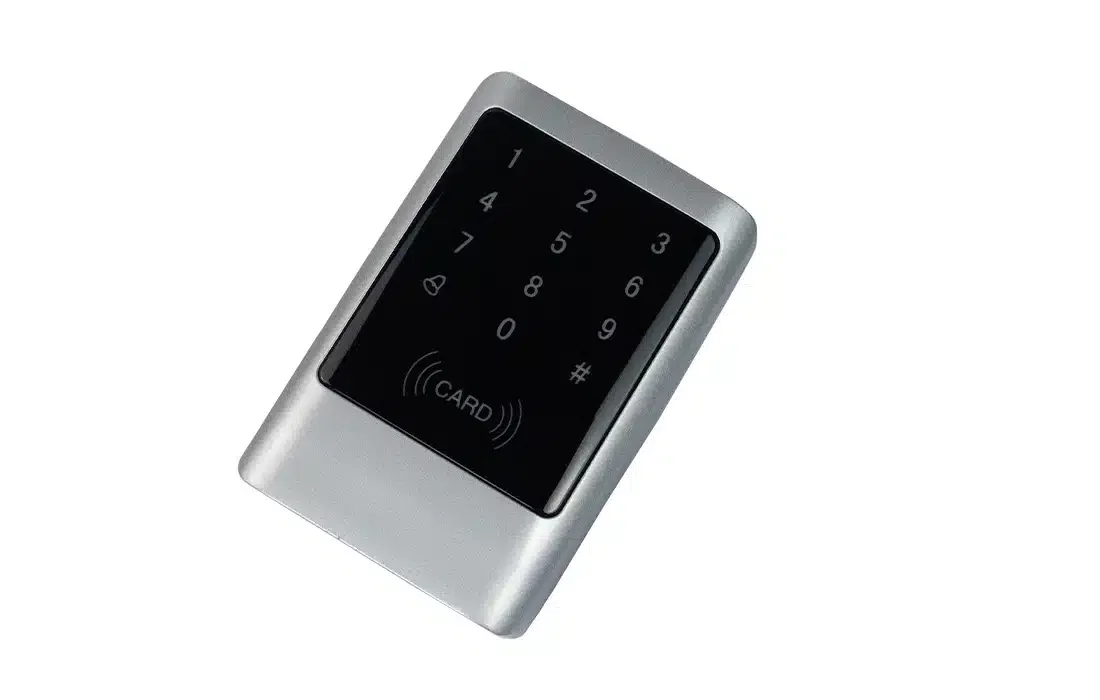

Access control reader for RFID card and password SecureEntry-AC400

Secure access

The SecureEntry-AC400 offers authentication by reading a 125 kHz RFID card or entering an individual password, giving you the freedom and choice of verification methods. The device features a voltage range of DC 9V – 16V and an operating current of 70 mA. After connecting the reader to an electronic or electromagnetic lock, we gain the ability to unlock the door using the above-mentioned authorization methods. An additional advantage is the Wiegand 26 Output interface, which makes it possible to connect the reader with other external devices, creating an access control system.

The access control reader is equipped with a two-color LED and an audible signal. When a registered RFID card is applied to the reader, the LED lights up green and an audible signal sounds, indicating that the authorization is correct.

RFID reader for access control by HDWR.

The set includes:

Access control reader with cables, instruction manual.

SecureEntry-AC400 RFID card access control from HDWR

Frequently asked questions

Specifications

Warranty

1 year

Reading distance

5-10 cm

Device type

Access control reader for RFID cards

Verification type

RFID card, password

Frequency of operation

125 kHz

Type of cards read

EM

Speed of response

less than 0.2 seconds

Communication distance

100 m

Data transfer

in real time

Light signal

built-in LED (two-color LED)

Sound signal

built-in speaker (buzzer)

Audiovisual signaling

when the registered card is applied to the reader, the red LED flashes green and a beep is emitted

Keyboard and keys

touch keyboard

Resistance

protection against water ingress

Voltage

DC 9V – 16V, standard DC12

Operating current

70 mA

Access control

yes

Interface

Wiegand 26 output

Operating temperature

-25º C – 75º C

Operating humidity

10%-90%

Product dimensions

12,3 x 8,4 x 2,3 cm

Package dimensions

18,5 x 13,9 x 5,5 cm

Product weight

200 g

Product weight with packaging

400 g
