Standalone access control for RFID cards and 13.56 mHz password SecureEntry-AC900HF

GTIN: 5907614669973 SKU: SecureEntry-AC900HF Category:
  • Verification type: RFID card (13.56 MHz, Mifare), PIN code
  • Operating frequency: 13.56 MHz
  • Max. users in memory: 1000
  • Reading distance: 2–10 cm
  • Interface: Wiegand 26 Output
  • Operating voltage: DC 12V ±12%
  • Relay output: DC 12V / 3A
  • Housing: metal

95.76(77.85 net)

7 in stock

Product availability
Secure payment
Secure payments
Pay quickly online and shop safely with Stripe Accepted payment methods
Shipping and returns
+ Satisfaction guarantee
Returnable within 30 days
Access control icon

Secure and reliable standalone access control — SecureEntry-AC900HF

The SecureEntry-AC900HF is a standalone access controller designed for high-level security and asset protection. Its robust metal housing ensures durability and resistance to everyday use. The controller is ideal for offices, companies, public institutions, residential buildings and private homes. Browse more access control systems in our offer.

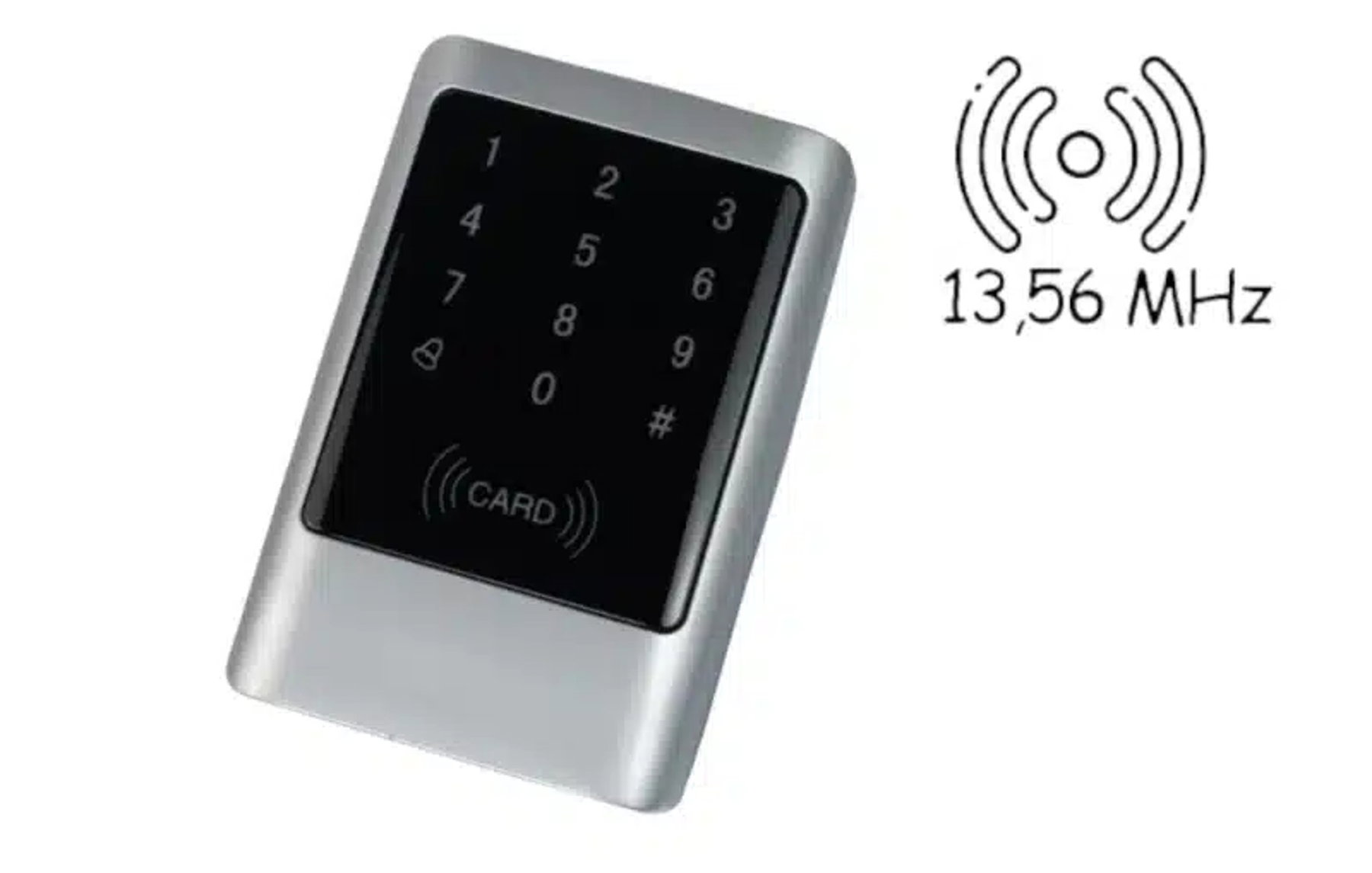

Standalone access controller for RFID cards and password SecureEntry-AC900HF

RFID card icon

13.56 MHz RFID and PIN verification

The SecureEntry-AC900HF supports two verification methods: 13.56 MHz RFID cards (Mifare technology) and an individual PIN code entered on the built-in touchpad. This gives users flexibility in how they authenticate. The reading distance of 2–10 cm ensures quick and reliable identification, while the touch keyboard makes operation clean and intuitive.

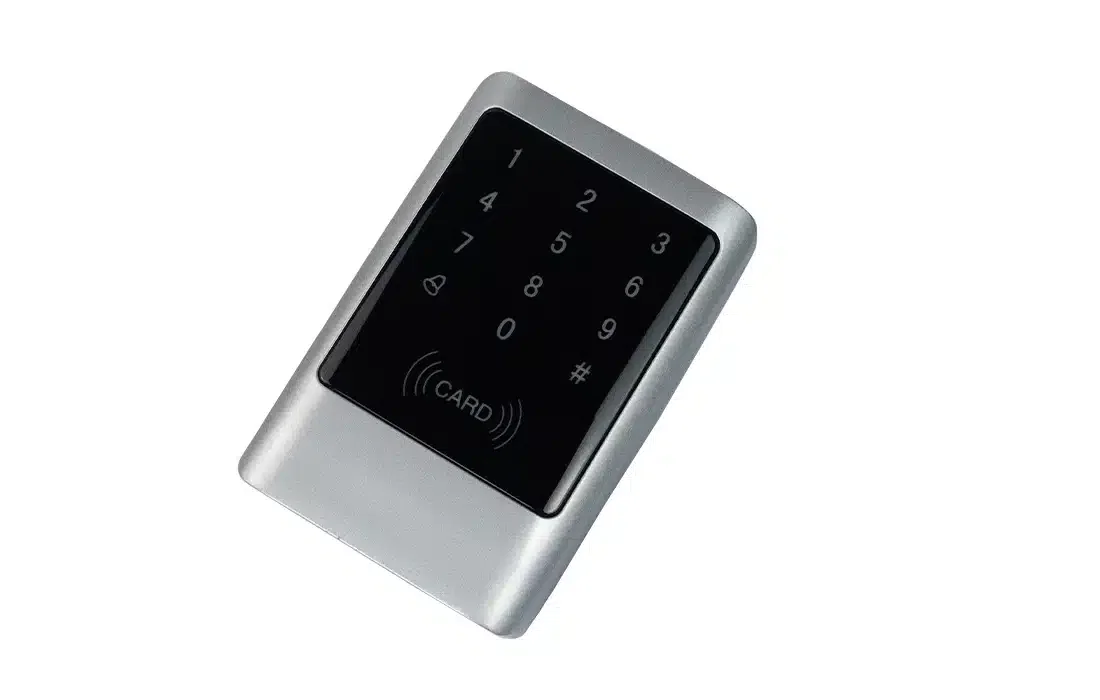

SecureEntry-AC900HF RFID card and PIN code access reader

Functionality icon

Direct lock connection via built-in relay

The controller is equipped with a built-in relay (DC 12V / 3A), allowing it to be connected directly to an electronic or electromagnetic door lock without any additional hardware. Unlocking the door is handled entirely by the supported verification methods. The device also supports direct doorbell connection and features a Wiegand 26 output interface, enabling integration with third-party access control systems and panels.

SecureEntry-AC900HF connected to an electronic door lock via relay

User management icon

Autonomous operation and on-device programming

The SecureEntry-AC900HF is a fully standalone device — it operates independently without the need for a PC or dedicated software. Card enrollment, user management and access rights are configured directly on the device. The system supports up to 1000 users in its memory, making it suitable for small businesses and larger organisations alike. The compact housing keeps the footprint minimal while delivering powerful access management capabilities.

SecureEntry-AC900HF standalone RFID access controller with on-device programming

Set contents icon

The set includes:

Standalone access controller SecureEntry-AC900HF with connection cables, instruction manual.

SecureEntry-AC900HF set contents

Specification

  • Warranty: 1 year
  • Device type: standalone access controller
  • Frequency of operation: 13,56 mHz
  • Max. number of employees in the base: 1000
  • Reading distance: 2-10 cm
  • Keyboard and keys: touch
  • Readable chip types: Mifare
  • Interface: Wiegand 26
  • Operating voltage: DC 12V +- 12%
  • Operating current: 1,2A
  • Interlock relay: DC 12V/3A
  • Operating temperature: 0°C ~ 45°C
  • Operating humidity: 40% - 90%
  • Product dimensions: 12,3 x 8,4 x 2,3 cm
  • Package dimensions: 18,5 x 13,9 x 5,5 cm
  • Product weight: 200 g
  • Product weight with packaging: 400 g

Frequently asked questions

What RFID card types are compatible with SecureEntry-AC900HF?

The SecureEntry-AC900HF reads Mifare cards and key fobs operating at 13.56 MHz. It does not support 125 kHz EM4100/HID cards — make sure your cards use the Mifare standard before purchasing.

Can the SecureEntry-AC900HF work without a PC or software?

Yes — the device is fully standalone. All configuration (adding cards, setting PINs, managing users) is performed directly on the controller itself using the built-in touchpad. No computer or dedicated software is required for everyday operation.

What type of lock can I connect to this controller?

The built-in relay (DC 12V / 3A) is compatible with most electronic and electromagnetic door locks available on the market. The relay output switches when a valid credential is presented, releasing the lock. The controller operates on DC 12V power supply (±12%).

What is the Wiegand 26 output used for?

The Wiegand 26 output allows the SecureEntry-AC900HF to act as a reader for a larger access control panel or system. Instead of using its built-in relay to control the lock directly, you can connect it to a compatible controller that handles more advanced access rules, logging or multi-door management.
