Outdoor RFID card access control system, water resistant SecureEntry-AC100

Name: RFID card access control, external reader SecureEntry-AC100
Brand: HDWR
SKU: SecureEntry-AC100
Price: 33.36 EUR
Availability: InStock
Rating: 5 (1 reviews)

GTIN: 5907614668778 SKU: SecureEntry-AC100 Category: Access control readers

Type of verification: RFID card 125 kHz, PIN code
Max. number of users: 1000
Max. number of RFID cards: 1000
Interface: Wiegand 26 / Wiegand 34
Reading distance: 1–6 cm
Power supply: DC 12V ± 10%, 0.1A
Housing: water-resistant ABS, suitable for outdoor use
Operating temperature: 0°C to 45°C

€33.36(€27.12 net)

23 in stock

Secure payments

Pay quickly online and shop safely with Stripe Accepted payment methods

+ Satisfaction guarantee

Returnable within 30 days

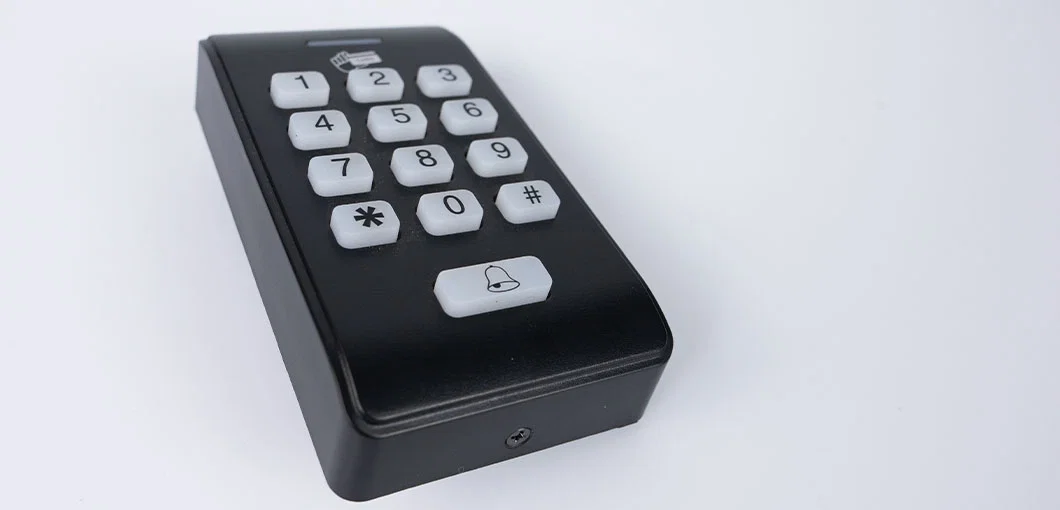

Protect your premises with the SecureEntry-AC100 outdoor access control reader

The SecureEntry-AC100 is an outdoor RFID card access control system designed to prevent unauthorized entry into buildings and secured areas. Built from high-quality ABS materials with a robust, water-resistant housing, it can be installed outside the building without concern for rain or humidity. Whether securing an office entrance, warehouse gate, or residential door, this access control reader delivers reliable, everyday protection.

Dual verification: RFID card and PIN code

The SecureEntry-AC100 supports two verification methods: a 125 kHz RFID card (or key fob) and an individual PIN code via the 13-button silicone keypad with backlit keys. Up to 1,000 users can be stored in the internal memory, making this reader suitable for small to medium-sized organizations. Each user can be assigned their own card or PIN independently, giving administrators flexible management options.

Compatible with electric locks and time recorders

The SecureEntry-AC100 can be directly connected to a 12V electromagnetic lock or an electric door strike, enabling door release upon successful RFID or PIN verification. The built-in Wiegand 26/Wiegand 34 protocol interface allows the reader to be integrated with a time and attendance system or any compatible access control panel, enabling data transfer to external devices. It also features a wired doorbell control output and a switch control output for extended functionality.

Designed for outdoor installation

The compact dimensions of 110 × 60 × 22 mm and lightweight construction (50 g) make mounting straightforward on walls, door frames, or gate posts. The water-resistant housing protects internal electronics from rain and humidity, making the SecureEntry-AC100 suitable for permanent outdoor use. Operating temperature range is 0°C to 45°C with storage down to -20°C, covering most climatic conditions. Power supply is DC 12V ± 10% at 0.1A.

The set includes:

SecureEntry-AC100 access control reader with cables, mounting studs and screws, instruction manual.

Specification

Warranty: 1 year
Fabrication material: ABS
Type of device: RFID card access control system, external password
Supported RFID cards: 125 kHz
Interface: Wiegand 26/ Wiegand 34
Additional features: wired doorbell control, Wiegand output, access control, switch control
Type of verification: RFID card, password
Max. number of employees in the base: 1000
Max. number of RFID cards: 1000
Reading distance: 1-6 cm
Number of buttons: 13
Button illumination: yes
Access control: yes
Voltage: DC12V±10% , Current: 0.1A
Keyboard: silicone keys
Operating temperature: 0~45°C
Storage temperature: -20~ 60°C
Operating humidity: 40%~90%
Storage humidity: 20%~90%
Product dimensions: 11 x 6 x 2,2 cm
Package dimensions: 13,5 x 9,8 x 3,5 cm
Product weight: 50 g
Product weight with packaging: 100 g
