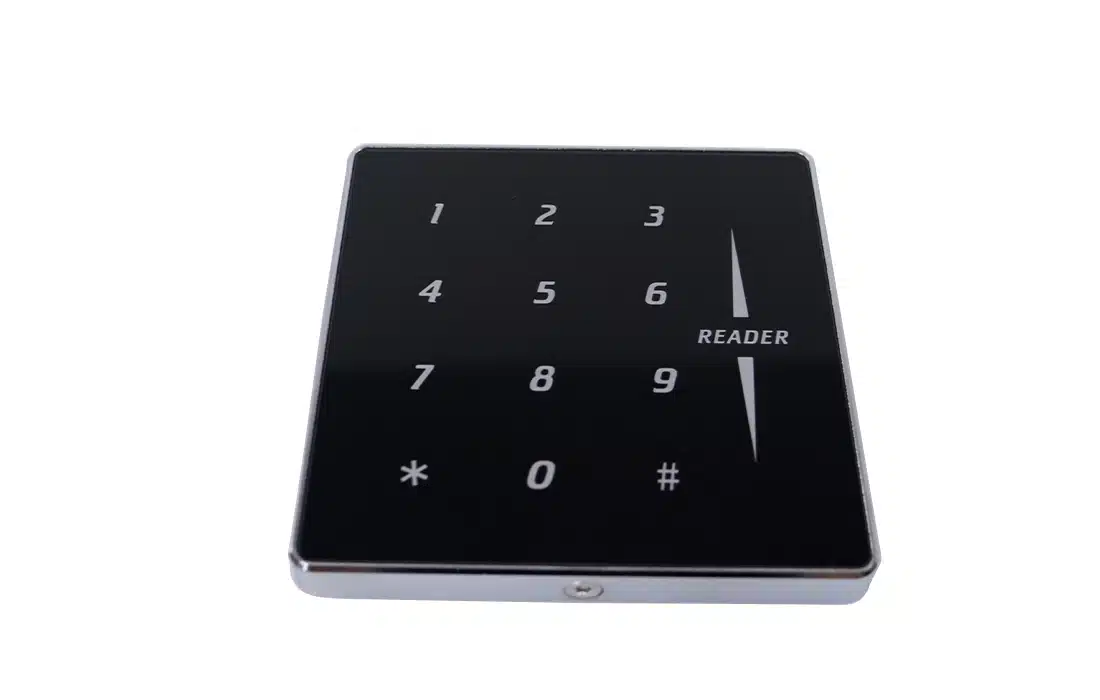

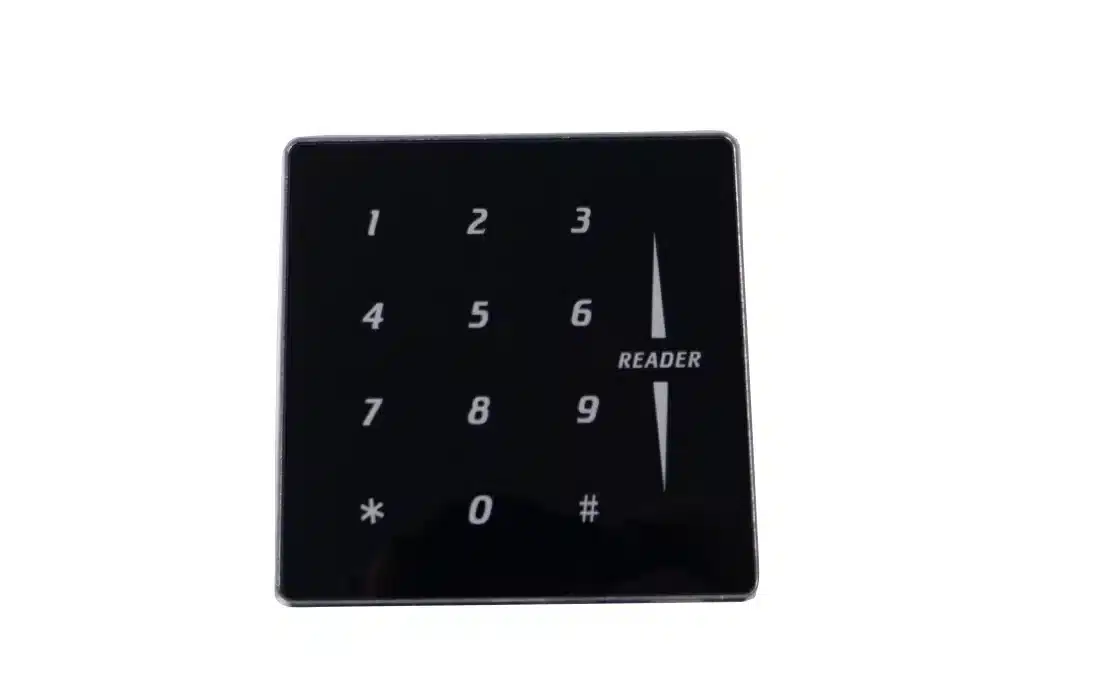

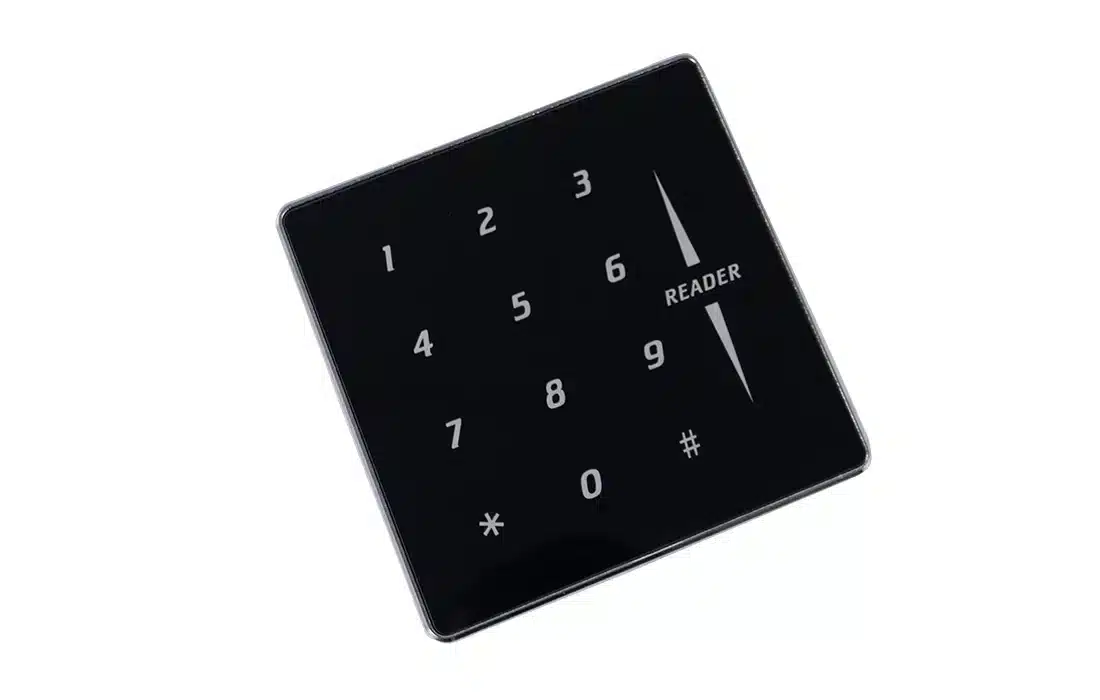

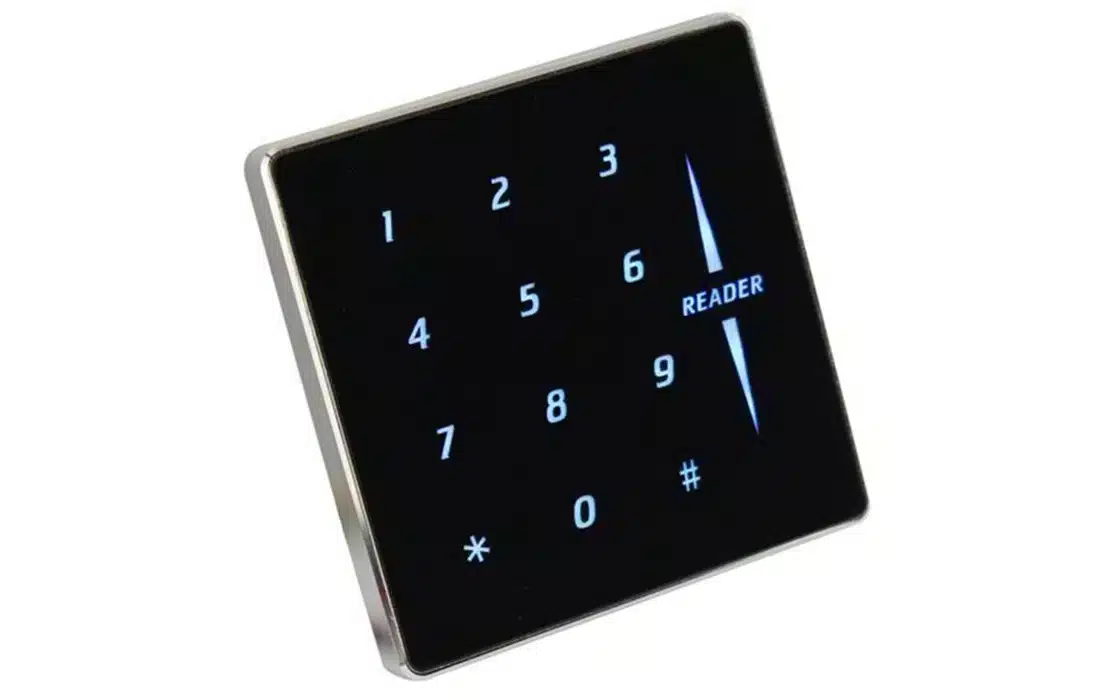

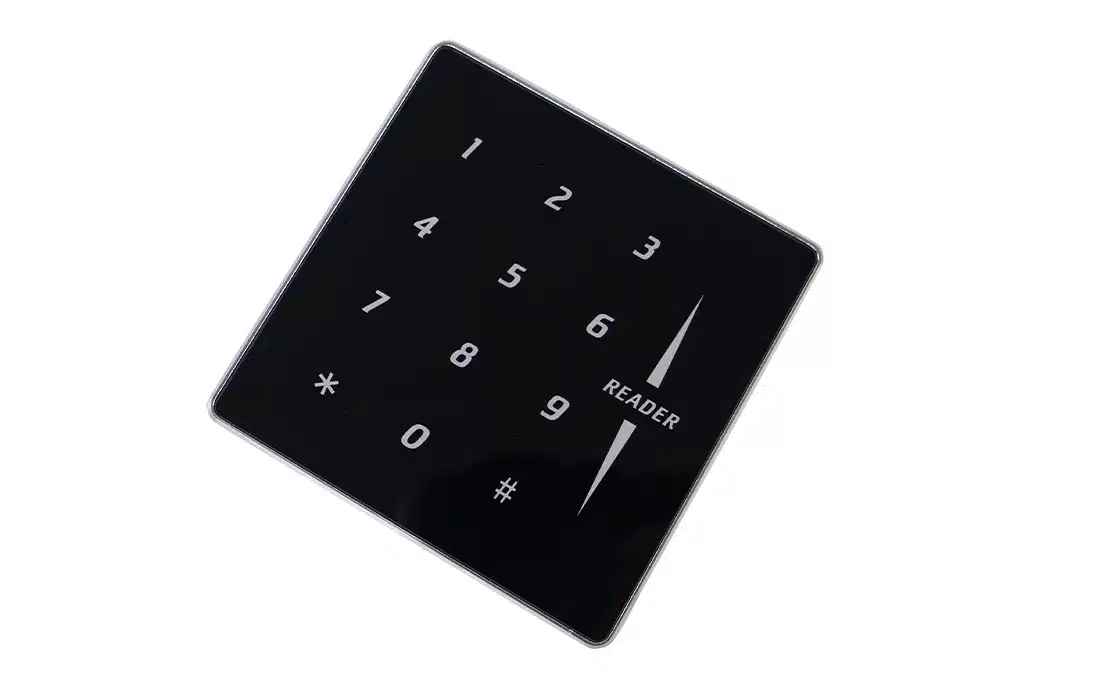

Access control reader for 13.56 MHz RFID card and password, Wiegand 26-34, DC 9V-16V, touch keypad, compact SecureEntry-AC800HF

SKU: SecureEntry-AC800HF
  • Verification type: RFID card, password
  • Frequency of operation: 13,56 MHz
  • Operating voltage: DC 9V-16V, standard 12V
  • Operating current: 70mA
  • Interface: Wiegand 26/ 34

Secure access and modern, elegant design – meet SecureEntry-AC800HF

The SecureEntry-AC800HF is an advanced access control reader that features a minimalist, sleek and modern design. The device is equipped with a touch-sensitive numeric keypad and an integrated RFID card reader. As a result, it not only provides security for access to buildings and rooms, but also enhances the aesthetics of the environment. The SecureEntry-AC800HF RFID reader is ideal for commercial applications such as companies, offices and institutions, as well as in apartment blocks and private homes.

Access control reader for 13.56 MHz RFID card and password SecureEntry-AC800HF

RFID card or password? The choice is yours!

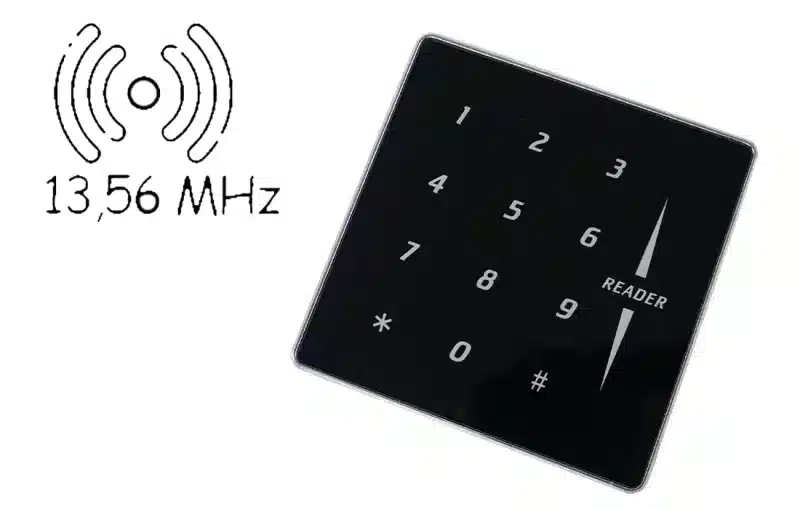

The SecureEntry-AC800HF supports a voltage range of DC 9V – 16V, standard 12V, and operates at 13.56 MHz. When the reader is integrated with an electronic or electromagnetic lock, we gain two options for unlocking the door. On the touch-sensitive, backlit keypad, we can enter our password or use an RFID card by bringing it close to the appropriate spot to read it out.

In addition, the SecureEntry-AC800HF access control system has a Wiegand 26 interface that can be changed to Wiegand 34.

RFID reader with access control for 13.56 MHz RFID cards and password by HDWR company

The set includes:

RFID access control reader, connecting cables, special key, user manual.

SecureEntry-AC800HF RFID card and password access control from HDWR

Frequently asked questions

Specifications

Warranty

1 year

Device type

Access control reader for RFID card and password

Frequency of operation

13,56 MHz

Verification type

RFID card, password

Speed of response

less than 0.2 seconds

Reading distance

5-10 cm

Access control

yes

Light signal

two-color LED

Sound signal

built-in speaker (buzzer)

Communication distance

100 meters

Data transfer

in real time

Operating voltage

DC 9V – 16V, standard 12V

Operating current

70mA

Interface

Wiegand 26 lub 34

Operating temperature

-25º C – 75º C

Operating humidity

10%-90%

Product dimensions

8,6 x 8,6 x 2 cm

Package dimensions

10,5 x 9,5 x 2,8 cm

Product weight

100 g

Product weight with packaging

300 g
