Tag-U8-069 long-range UHF RFID tag 865-868 MHz

Long-range UHF RFID tag with read range up to 10 m and 865-868 MHz frequency, white Tag-U8-069

GTIN: 5906935201008 SKU: Tag-U8-069 Category: RFID tags

Operating frequency: EU 865-868 MHz, US 902-928 MHz
Material: PC
Reading distance: Up to 5 m (handheld reader), up to 10 m (stationary reader)
Color: white

€1.66(€1.35 net)

140 in stock

Secure payments

Pay quickly online and shop safely with Stripe Accepted payment methods

+ Satisfaction guarantee

Returnable within 30 days

Advanced U8-069 RFID tag with a long read range of up to 10 metres

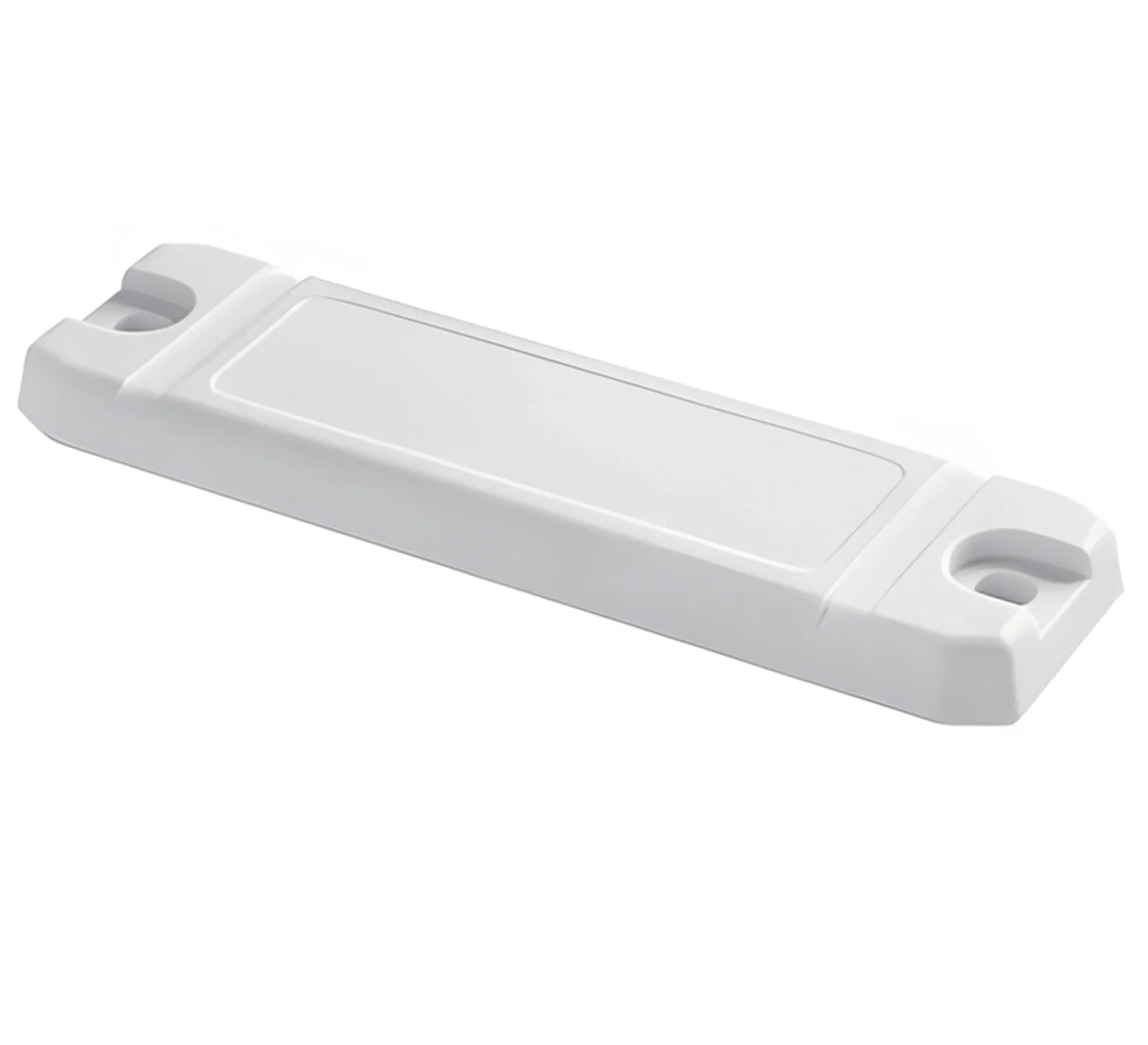

The Tag-U8-069 is a long-range UHF RFID tag based on the NXP UCODE 8 chip, designed for demanding industrial and outdoor environments. It operates at 865-868 MHz (Europe) or 902-928 MHz (USA), which makes it globally compatible. The tag has a compact size of 69 x 23 x 7 mm and two mounting holes. Browse more RFID tags in our offer.

The Tag-U8-069 is used in industries that require precise asset tracking, such as logistics, industrial manufacturing, warehousing and fleet management. Its rugged construction, resistance to water and contamination (IP68) and a long read range of up to 10 metres make it an ideal solution for tracking large metal objects and machinery in demanding environments.

Specification

Color: white
Material: PC
Frequency of operation: EU 865-868 MHz, US 902-928 MHz
Reading distance: Up to 5 m (handheld reader), up to 10 m (stationary reader)
IC type: NXP UCODE 8
Memory: EPC 128 bits, TID 96 bits
Write cycles: 100,000 times
Data storage: up to 50 years
Dimensions of the device: 69 x 23 x 7 mm
Holes: 5.2 mm x 2
Weight: 10.8 g
Operating temperature: -25°C to +85°C
Storage temperature: -40°C to +85°C
Protection class: IP68
Certificates: Approved range, Approved RoHS, Approved CE
