Stationary barcode reader and QR CMOS sensor HD-S92

SKU: HD-S92
  • Scanning: Manual (on the button) / automatic (after approaching the code)
  • Scanning speed: 2200 scans per second
  • Type of scanned codes: 1D and 2D barcodes (e.g., QR) from paper labels and phone screens
  • Resistance to falls: from a height of up to 1.5 m

Discover the modern and elegant stationary barcode reader HD-S92

HD-S92 is a modern stationary barcode reader designed for stationary work. It is made of high-quality materials that ensure durability and solidity. It features an elegant look and a compact shape, making it suitable for any interior, saving workspace, and enhancing the aesthetics of the environment.

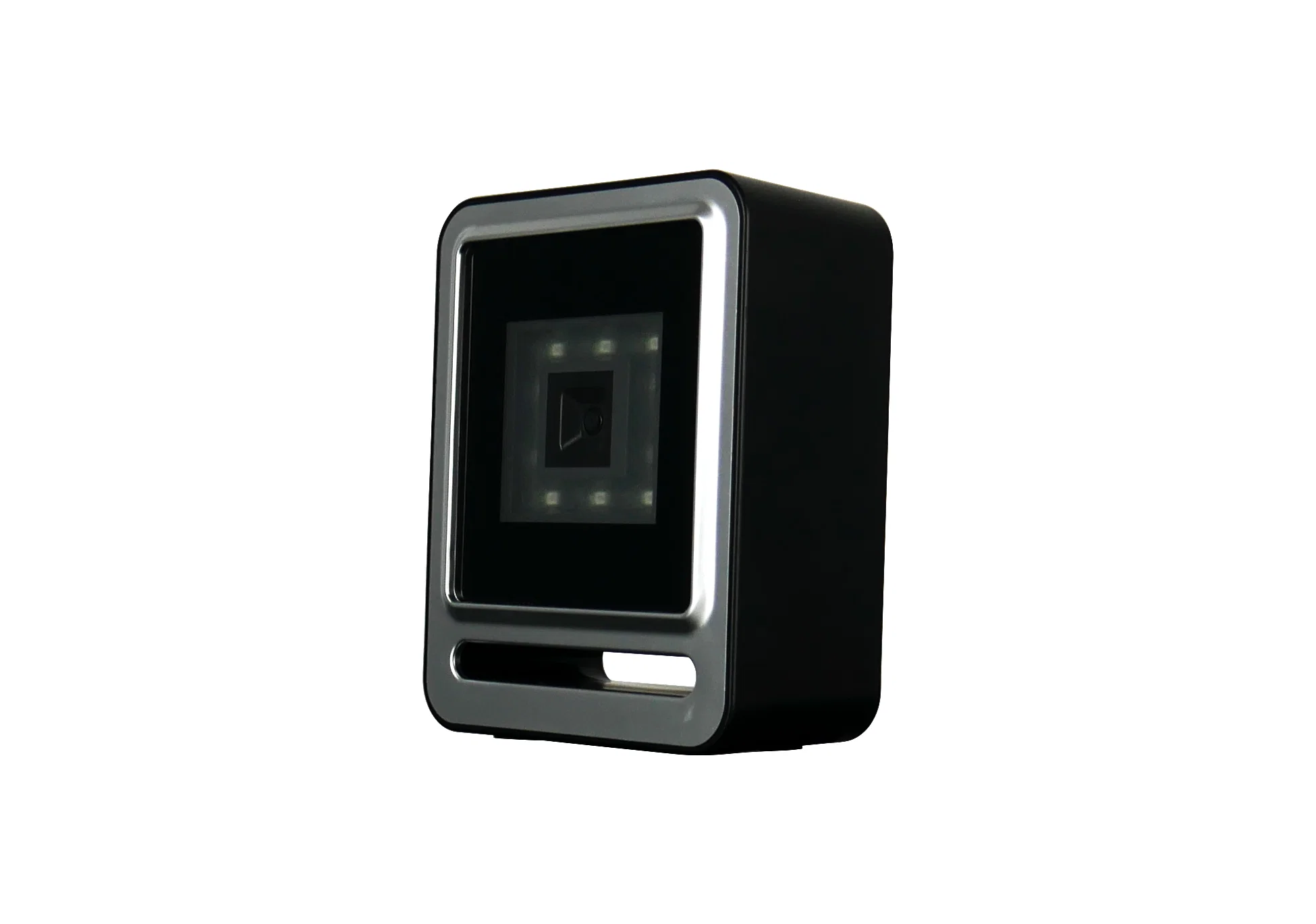

A QR code scanner with a CMOS sensor.

The scanning speed and precision

The device precisely and quickly scans leading 1D and 2D codes, both printed and displayed on LCD and LED/OLED screens as well as mobile device displays. The advanced optical module can also handle unclear, blurry, or damaged codes. A significant advantage of the reader is the ability to program any character as a prefix and suffix, including function keys (F11, F9, F7, etc.). The scanner seamlessly integrates with the cash register, making it ideal for use in stores and boutiques.

A stationary QR code scanner that can scan codes from a phone screen.

Performance and Energy Efficiency

Model HD-S92 allows for operation in automatic mode, where codes are scanned as soon as they come within the range of the light beam. This eliminates the need to press the scan button and enhances convenience and work efficiency. The red LED aiming aid, designed to save energy, turns off after a longer period of inactivity. The built-in motion sensor reactivates the scanner as soon as it detects a code within range.

Stationary QR Code Scanner HD-S92

The set includes:

Stationary barcode reader, USB cable, user manual.

Wired QR and Barcode Scanner HD-S92

Discover HD-S92 Anew

Watch a video showcasing the details of the HD-S92 scanner model on YouTube.

Specifications

Warranty

2 years

Light source

Red LED

Optical resolution

640 x 480 , 120 fps

Scanning method

Manual (on the button) / automatic (after approaching the code)

Confirmation of scanning

light and sound signal

Scanning speed

200 scans per second

Scanning angle

rotation: 0-360 degrees, tilt: ± 65 degrees, tilt: ± 6 5 degrees

Print contrast

min 25%

Error rate

≤ 1/2 000 000

Electrical voltage

5V DC

Operating current

390 mA (max), 220 mA (typical)

Interface

USB

Cable length

200 cm

Degree of protection

IP54

Resistance to falls

up to 1.5 m

Dimensions of the device

12 x 11 x 5,3 cm

Package dimensions

13,5 x 10,5 x 5,5 cm

Weight of the device

300 g

Weight of the device with packaging

460 g

Operating temperature

-20 to 60°C

Storage temperature

-40 to 85°C

Operating humidity

5% – 95%

Readable 1D codes

Code 39, Full ASCII Code 39, Code 32, Code 128, Code 93,Code 11, Codabar/NW7, All UPC/EAN/JAN code (EAN-13,EAN-8, UPC-A, UPC-E, EAN-128), Interleaved 2 of 5 (ITF), STD 2 z 5, Industrial 2 of 5, Matrix 2 z 5, Chinese Postage Code, IATA, MSI/PLESSY, Italian Pharmacy Code, BC-412

Readable 2D codes

QR Code, Data Matrix, PDF417, Aztec code, Maxicode
